Redmine Cases

What is Redmine for​

  • Redmine will be used for incident management
    • When a case in Elastic requires deeper investigation and is/potentially is malicious, escalate to Redmine

NOTE

  • Make sure to add in a comment within the Elastic Case about the need to escalate incident

  • Redmine has three project areas that different parts of the team will work

    1. Intel Support: Where you will submit issues (such as RFIs) to intel
    2. Investigations: Where team will tackle events/incidents that members have escalated
    3. W/S Support: Where you will submit trouble-tickets for CYOC member to address

  • For operators, the “Investigations” and “Intel Support” sections are where you will mostly work

Creating Redmine Case: Starting in the Elastic Case​

  • Begin by scrolling to the bottom of the specific Elastic Case

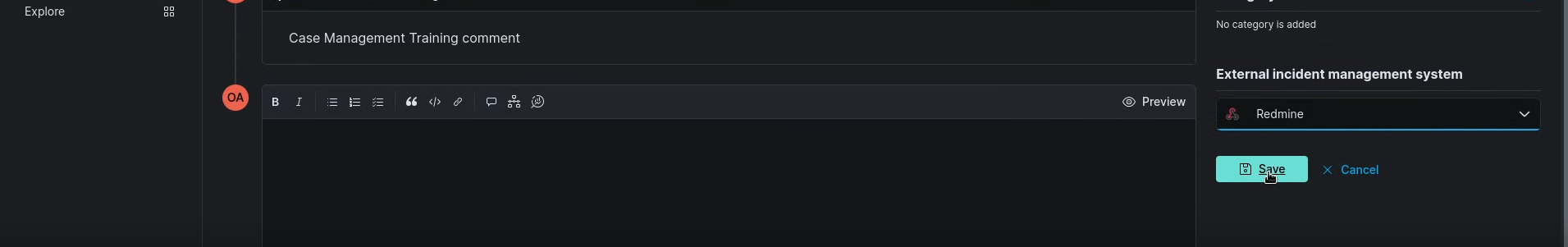

    • In the External incident management system, click on the No connector selector and change it to Redmine
    • Once the connector is defined, click on the Push as Redmine incident
      • Current As Of: 16 April 2024

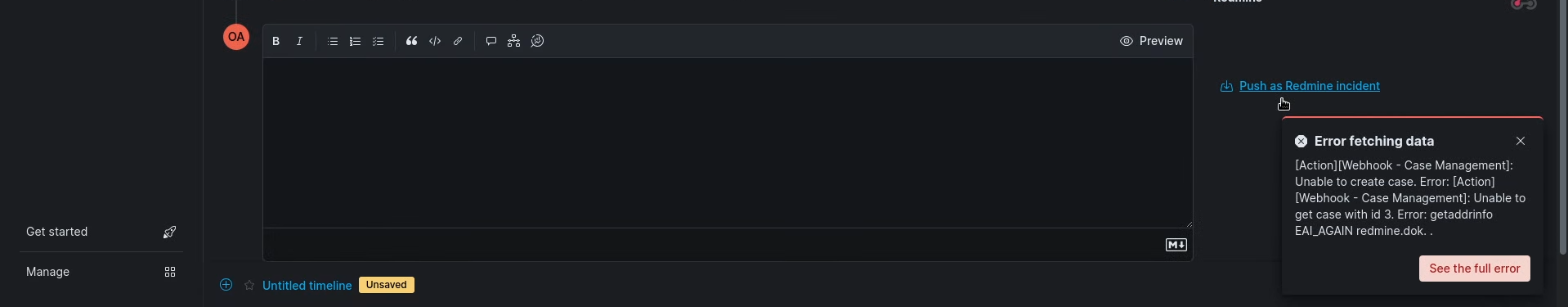

        • A fetching error will display at this point. It is a bug in the system. DO NOT click on Push as Redmine incident again. The case will have escalated appropriately already

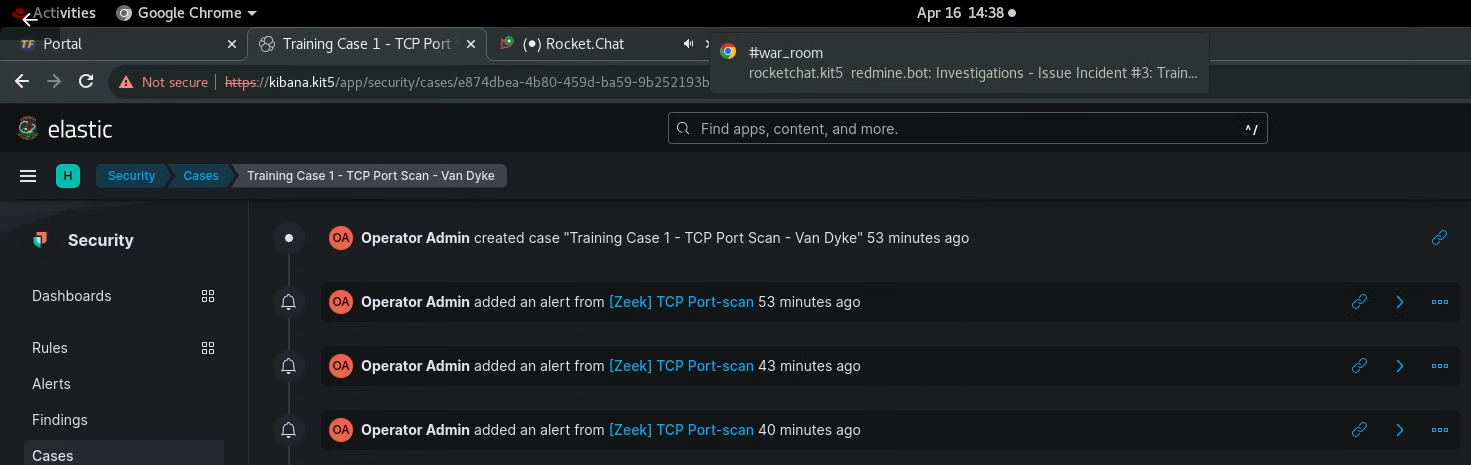

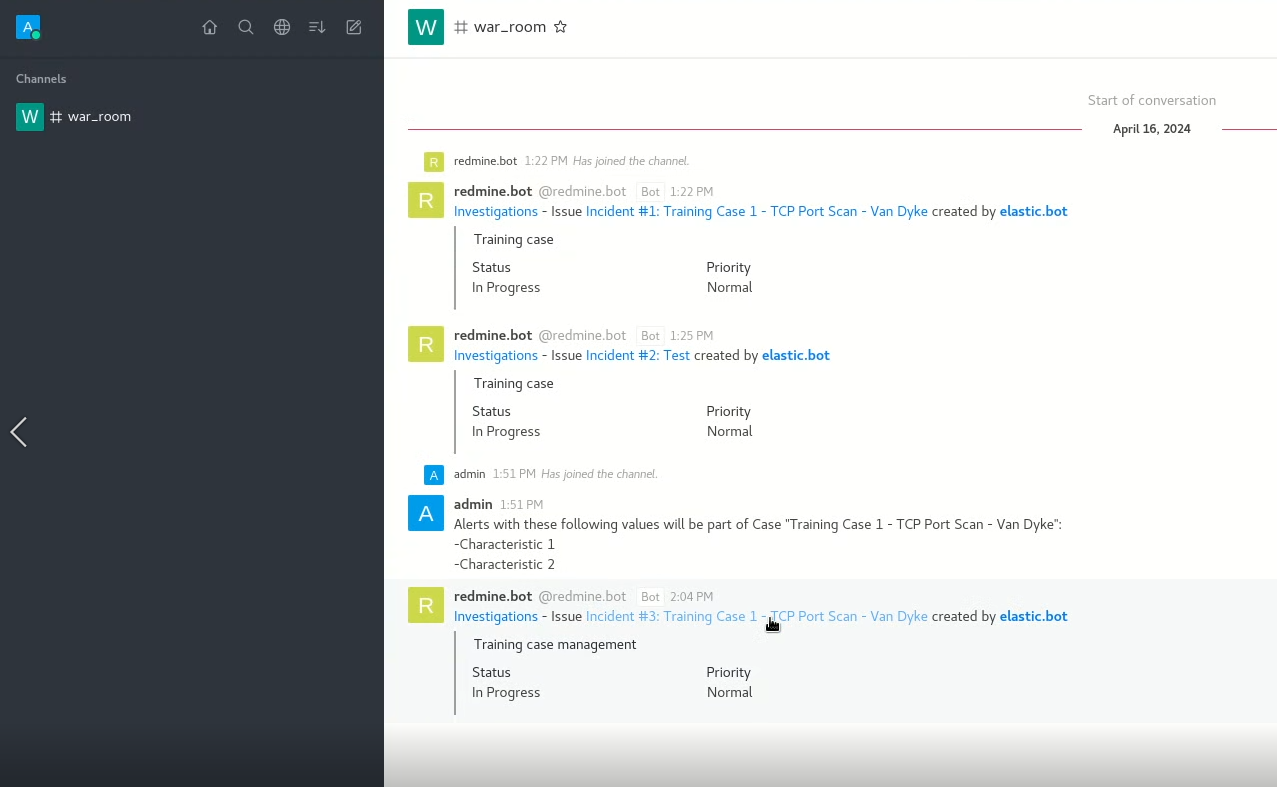

Connector pushes to Rocketchat​

  • Can validate by checking Rocketchat #war_room comment has automatically been made

Creating an issue in Redmine​

  • This is how you can create a new ticket in Redmine, or request support from Intel and the W/S Support teams
    • Teams will use this to create a dedicated ticket in Redmine that isn't based off an alert in Elastic

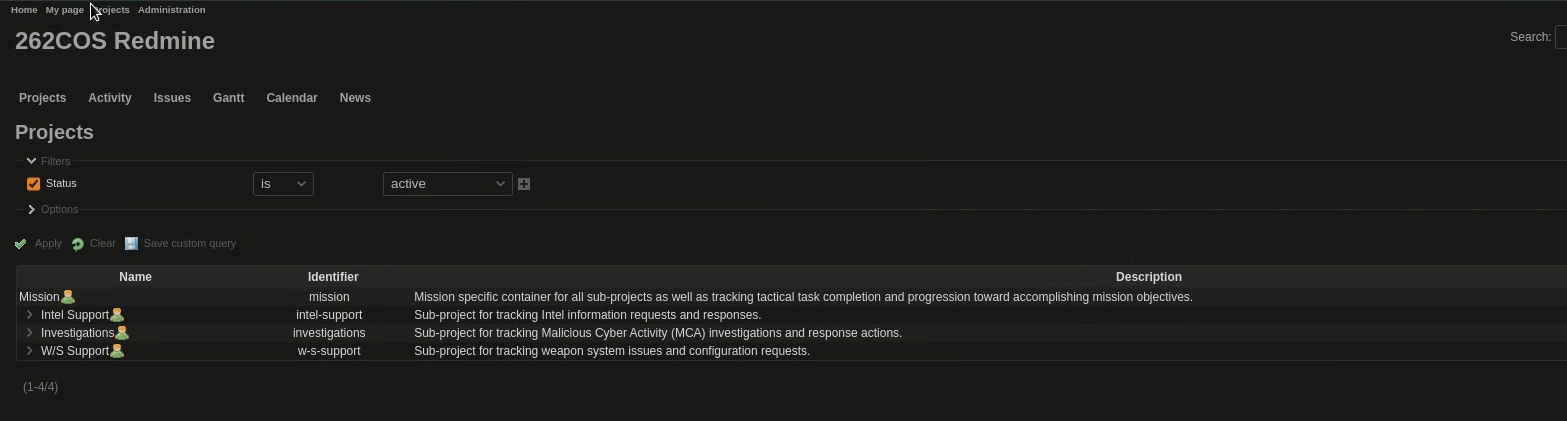

  • Begin by selecting the appropriate project
    • Intel Support, Investigations, W/S Support

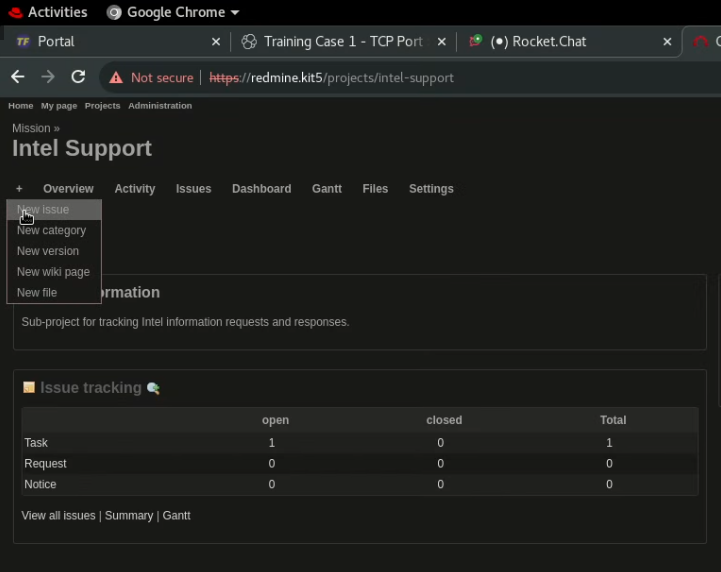

  • Select the + in the upper-left corner and select New Issue

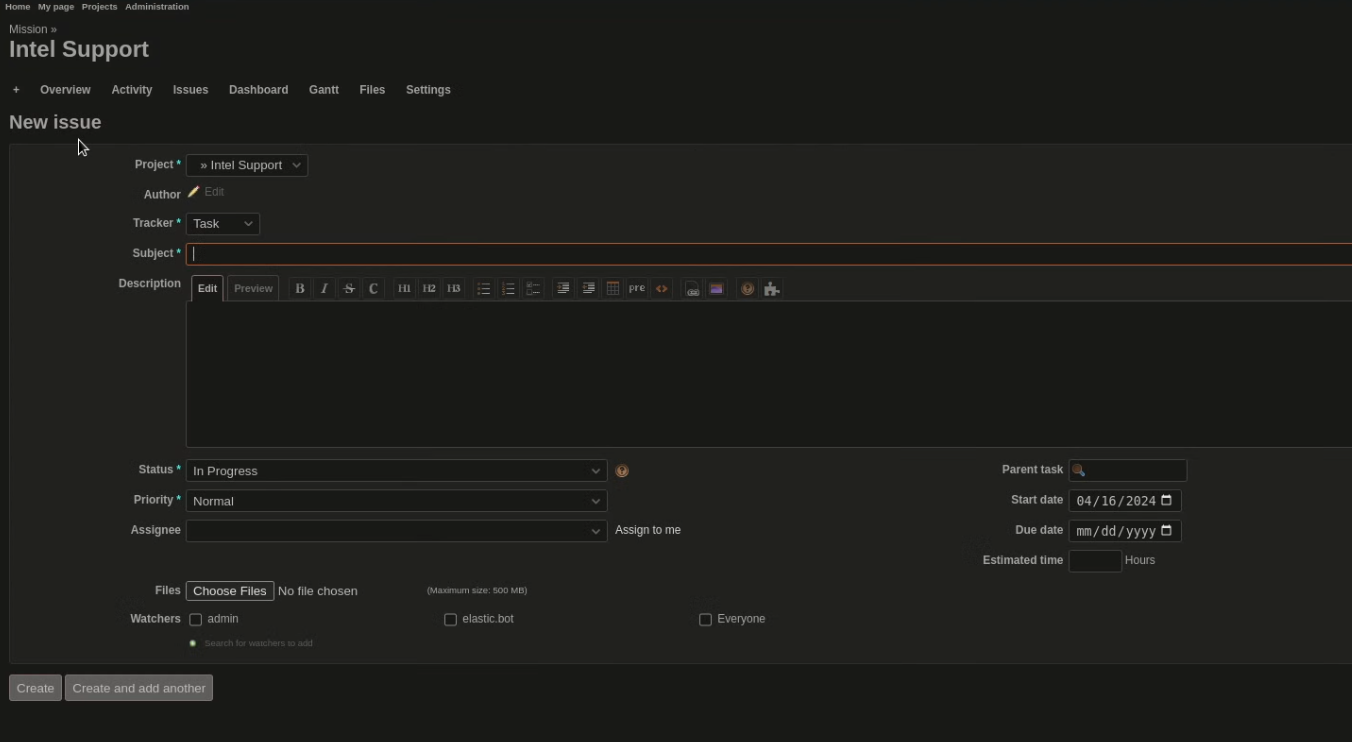

  • On the following page:
    • Ensure the appropriate project group is selected
    • Define what kind of Tracker it is
      • Investigation: Tasks or Incidents
      • Intel: Tasks, Requests, or Notices
      • W/S Support: Tasks, Requests, or Notices
    • Clearly define the subject
      • Analyst Last Name - Characteristic
    • In the description section:
      • For Intel Support and W/S Support: Define clearly what the request/ask is for and the desired outcome
      • For Investigations: Same requirements as a normal ticket

NOTE

  • Subject section should match Elastic Cases
  • Description is a short note on what is being investigated
  • Notes is for deeper analytical notes

Working an existing Redmine Case​

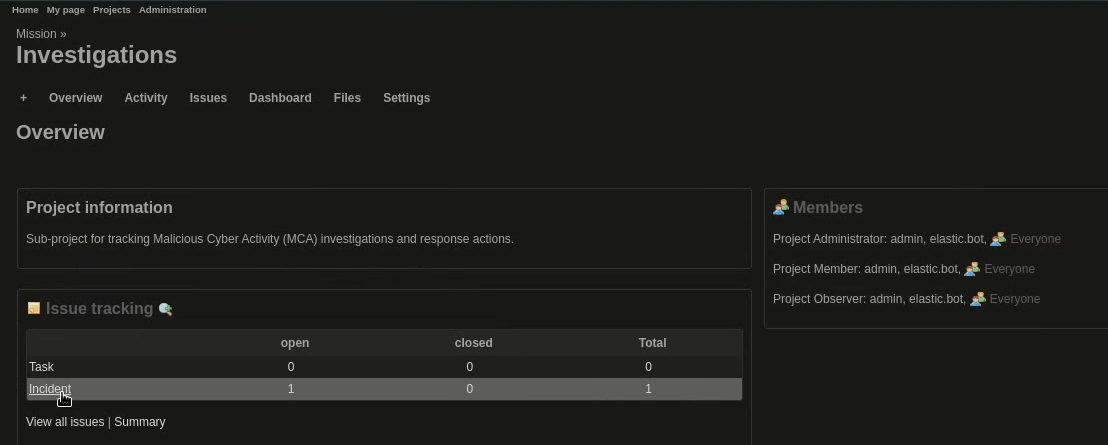

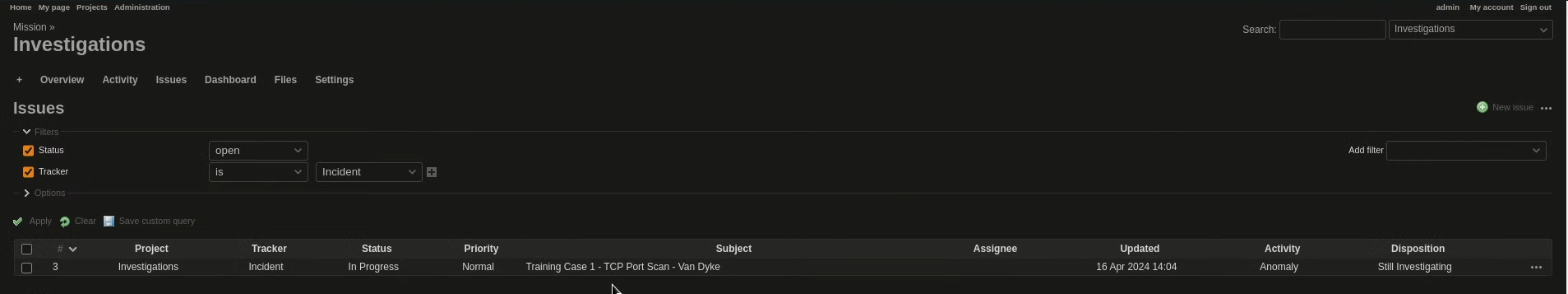

  • Select Projects > Investigations > Incidents
    • The newly escalated Elastic Case should be present
    • Click on the title of your case to review and make changes

The Notes Section of a Redmine Case​

  • Should at minimum have the following:

    1. Investigation Links
    2. Category: Process, File, Network, or User
    3. Description of analysis
    4. Artifacts and IOCs
    5. Response Actions
    6. Intel Notes

  • Under the Files section, you are able to add artifacts and files to the Redmine Case

    NOTE Make sure to remove the executable ability of malicious/potentially malicious artifacts and to de-fang web links

  • Once all your additions/modifications are done, select Submit

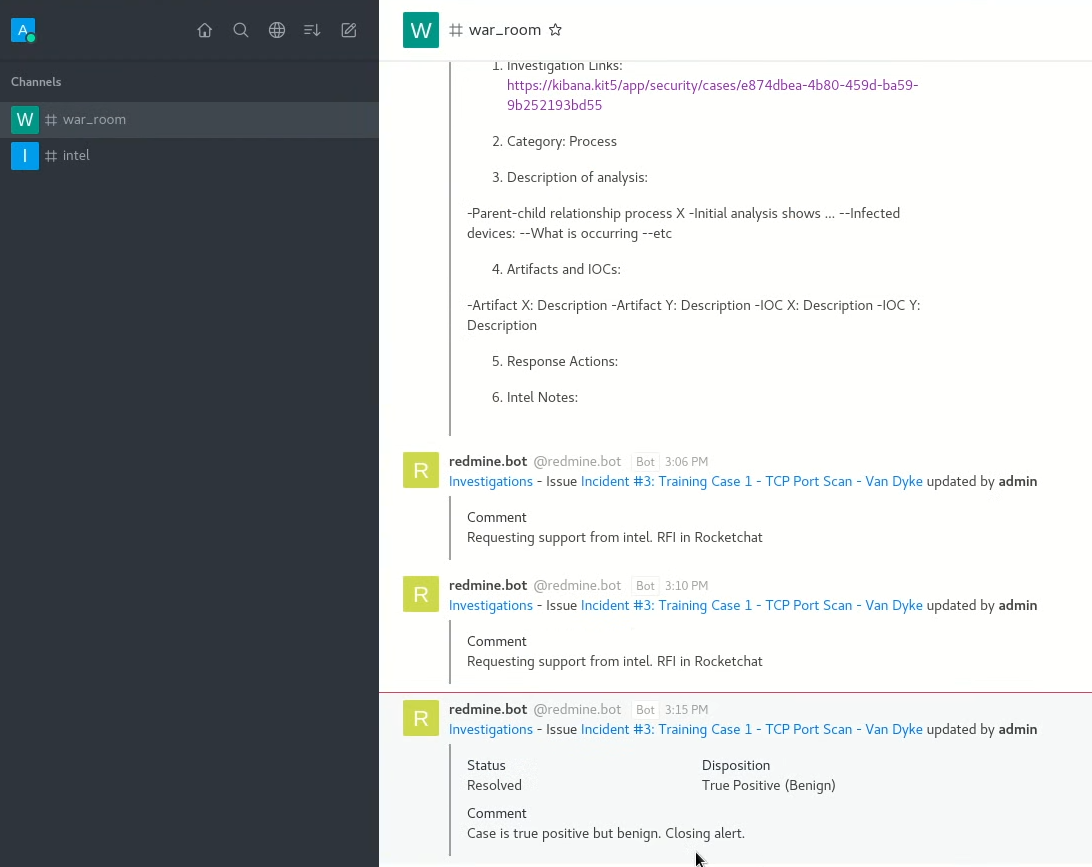

  • Comment will automatically be populated in Rocketchat channel #war_room

    • Validate each time you update case

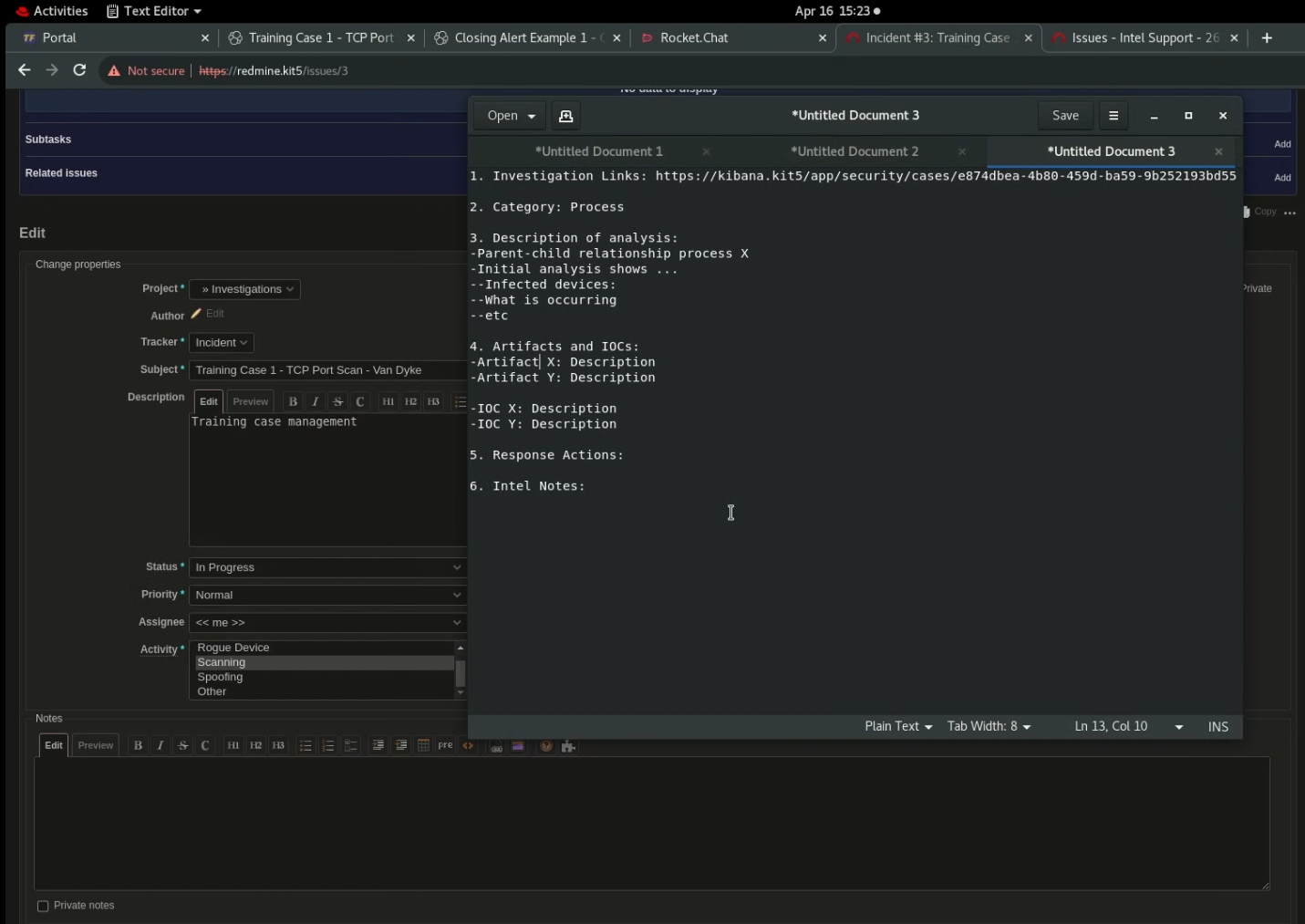

Example Redmine Case​

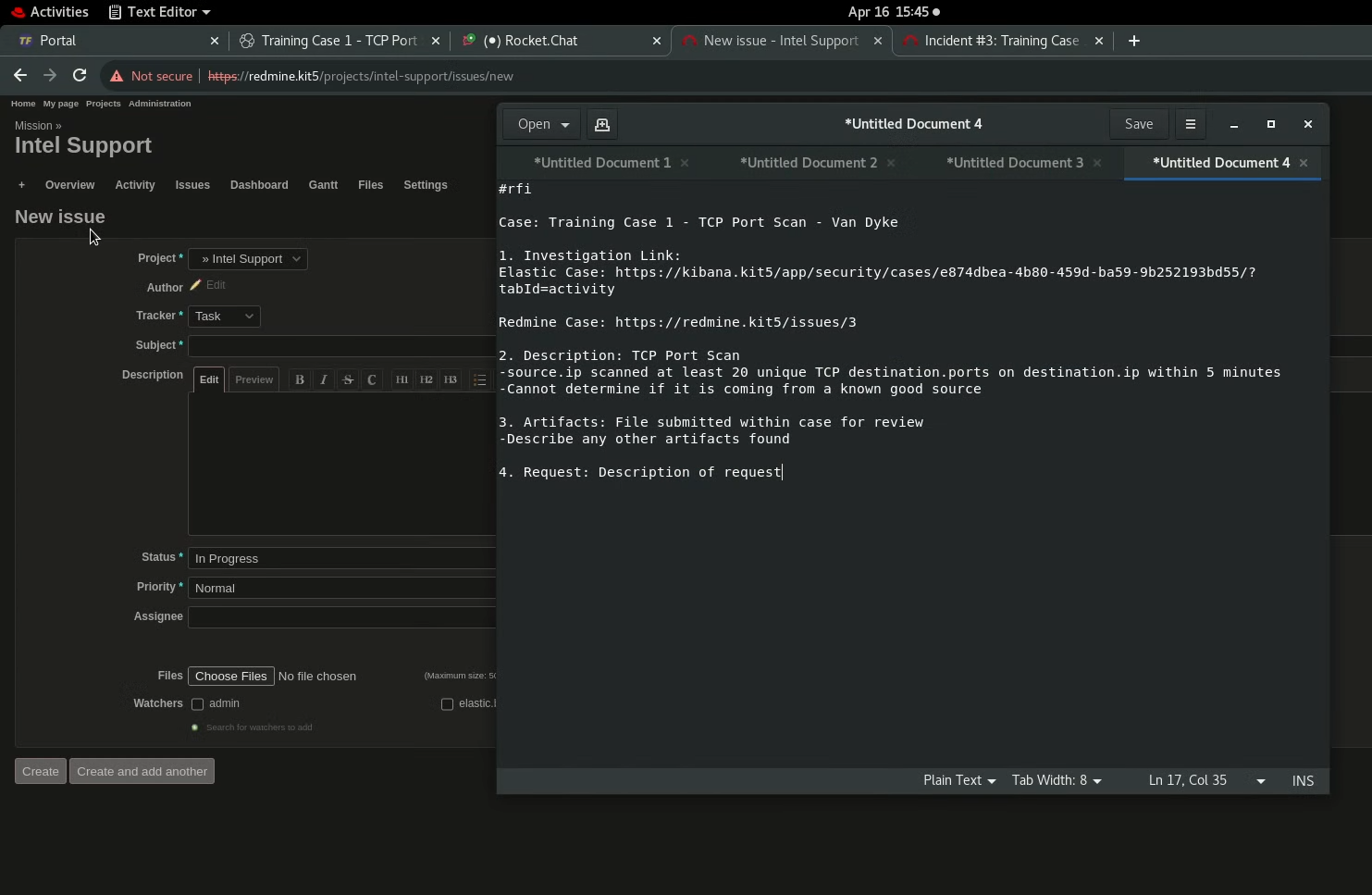

RFI to Intel​

  • When requesting Intel Support:

    • Ensure you place a comment in the Redmine Case, defining the potential need
      • #war_room will automatically populate a comment once you have done this. This is important for reconstructing timeline of events

  • Create an Issue in the Intel Support project in Redmine

    • In the upper-left, you’ll see a + sign
    • Select this, then New Issue

  • Within the new issue, ensure that you define the following:

    Name of Case

    1. Investigation Links
    2. Short description of events
    3. Short description of artifacts
    4. Description of requested need

  • Redmine will automatically push a comment to the #intel channel

    • Validate that your issue follows appropriate communications contract

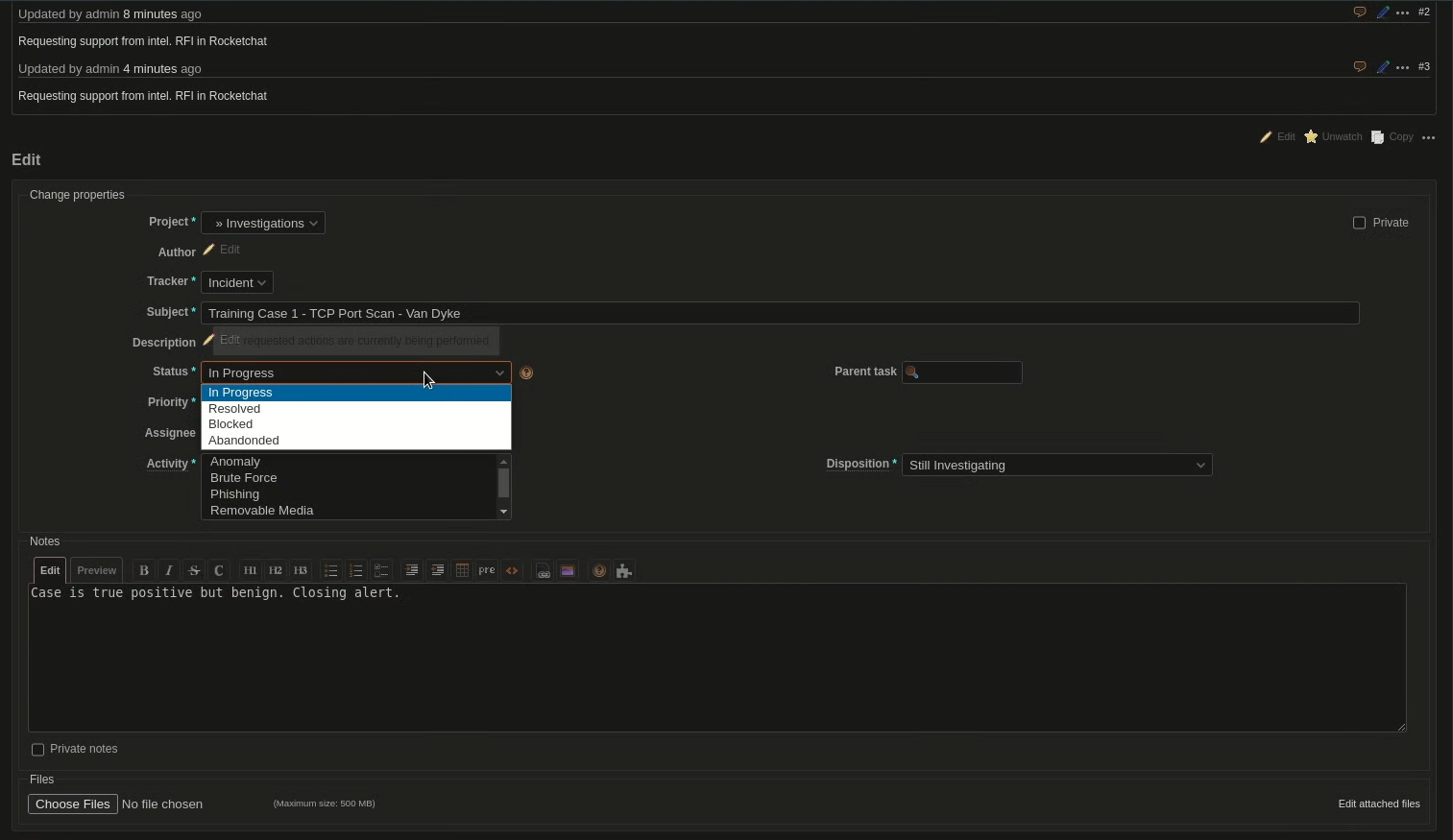

Closing a Redmine Case​

  • To close the Redmine Case
    • Add a comment of the end result of the investigation
    • Change the “Status” and “Disposition” to whatever is appropriate
      • Status options are: Resolved, Blocked, Abandoned
      • One of these options need to be selected for case to close after submission
    • Once submitted, will populate in the Rocketchat #war_room channel
